Rotary Joint

                                                                      Home - Products

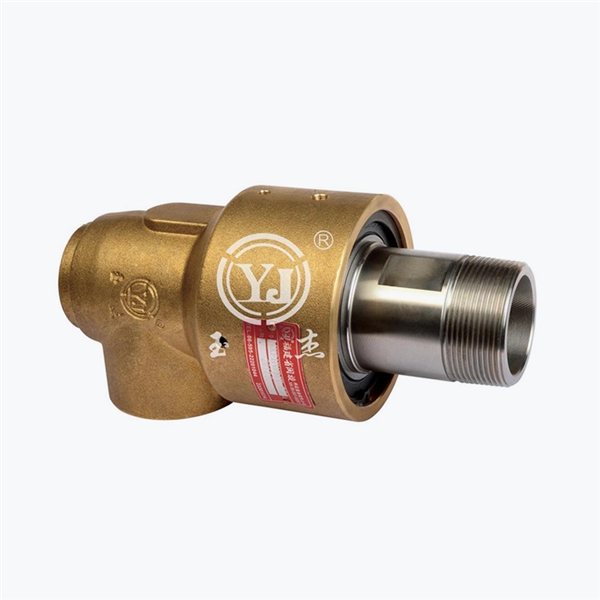

                                                                      MXPH Rotary Joint (Mono Flow)

                                                                      Model：MXPH
                                                                      Outer pipe：Thread connection or flange connection
                                                                      Feature：Plane sealing design; Standard antimony impregnated graphite or carbon graphite sealing technology; Balance design of metalloid composite or metalloid friction pairs; Single spring design; Self-supporting design; Double bearing spacing support; Copper alloy shell; Mono-flow and dual-flow design; Low torque.

                                                                      Technical Parameter：
                                                                      Media Water、Oil
                                                                      Max.Temperature ≤120℃（Water）、≤260℃（Oil）
                                                                      Max.Pressure ≤1.0MPa
                                                                      Max.Speed ≤1500rpm

                                                                      Product consultation Back to list

                                                                      Sales Service Hotline：

                                                                      0595-8686 1188

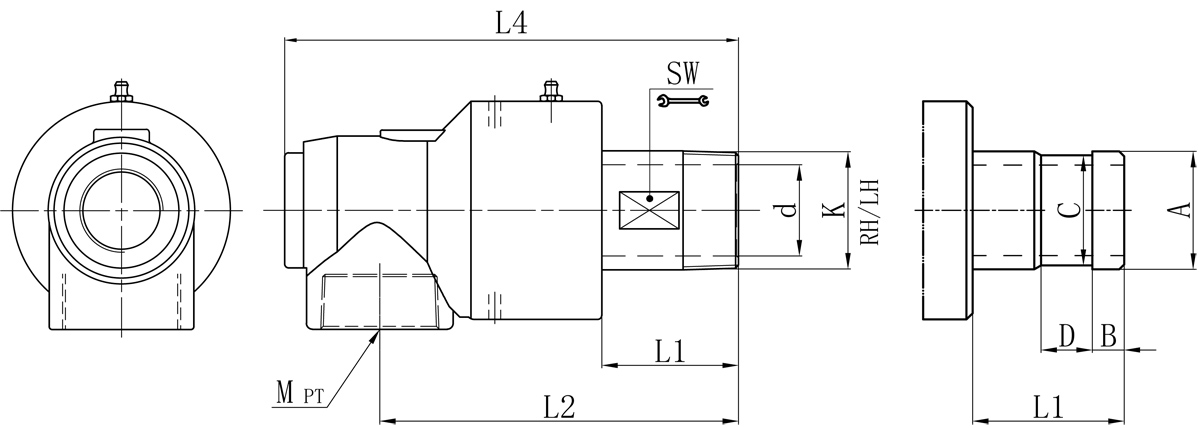

                                                                      Model K I d L1 L2 L4 SW Flange outer tube size control table
                                                                      A B C D
                                                                      50A R2" Rp2” 46 69 181 220 57 60 16 57 24

                                                                      We offer customized products if special sizes.
                                                                      Specifications are subject to change without notice.
