Rotary Joint

                                                                      Home - Products

                                                                      TM308 (內管固定式)

                                                                      Model：QSY、TM308
                                                                      Outer pipe：Thread connection or flange connection
                                                                      Feature：Spherical seal design; Wear compensation by a spring; Renewable seal plate; Maintenance-free.

                                                                      Technical Parameter：
                                                                      Media Steam
                                                                      Max.Temperature ≤220℃
                                                                      Max.Pressure ≤1.8MPa
                                                                      Max.Speed ≤100rpm

                                                                      Product consultation Back to list

                                                                      Sales Service Hotline：

                                                                      0595-8686 1188

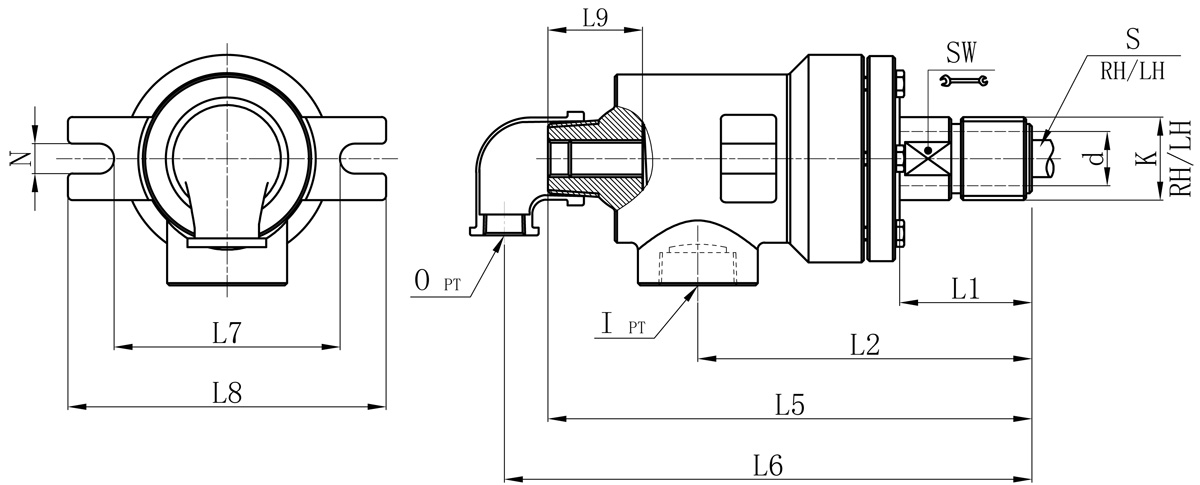

                                                                      Model K I O S d L1 L2 L5 L6 L7 L8 L9 N SW
                                                                      25A M36X4 Rc3/4" Rc1/2" M16X1.5/M12X1.5 22 58 145 210 222 98 138 41 13 32
                                                                      We offer customized products if special sizes.
                                                                      Specifications are subject to change without notice.
