                                                                      MXB2 Rotary Joint (Mono Flow)

                                                                      Model：MXB2
                                                                      Outer pipe：Flange
                                                                      Feature：Suitable for water, hot oil media;Plane seal design; Multi-spring design;Spring external balance design;Self-supporting design;Balanced non-metallic combined friction design or balanced non-metallic friction pair design;Low torque.

                                                                      Technical Parameter：
                                                                      Media Water、Oil
                                                                      Max.Temperature ≤100℃（Water）、≤300℃（Oil）
                                                                      Max.Pressure ≤1.0MPa
                                                                      Max.Speed 80A ≤ 500rpm

                                                                      Product consultation Back to list

                                                                      Sales Service Hotline：

                                                                      0595-8686 1188

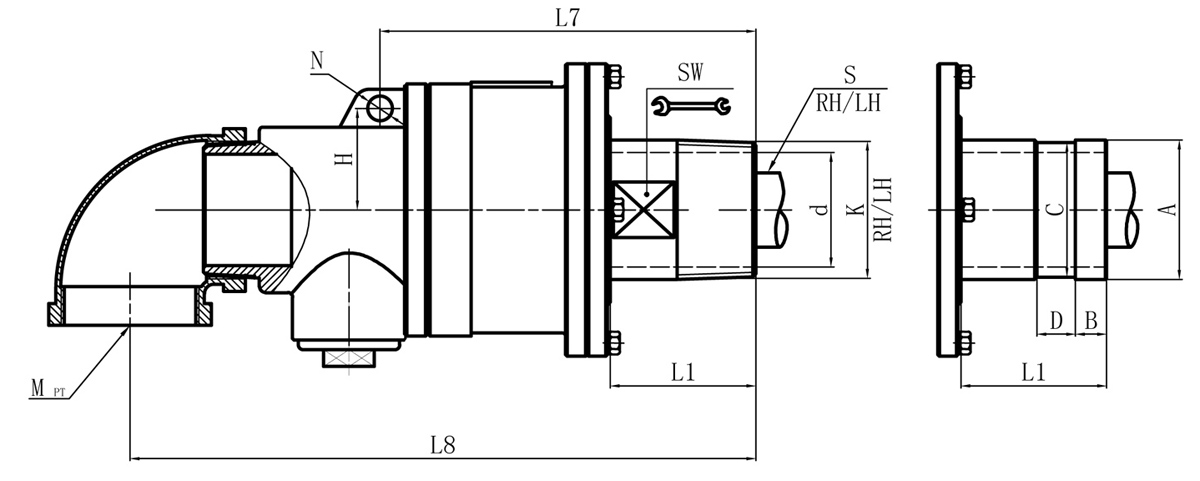

                                                                      Model K M I O S S1 D1 L1 L2 L3 L5 L6 L7 L8 N SW H Flange outer tube size control table
                                                                      A B C D
                                                                      80A R3" Rc3" Rc2-1/2" Rc1-1/2" Rp1-1/2" 47 72 94 263 45 357 387 243 405 16 85 66 90 20 887 25

                                                                      We offer customized products if special sizes.
                                                                      Specifications are subject to change without notice.
