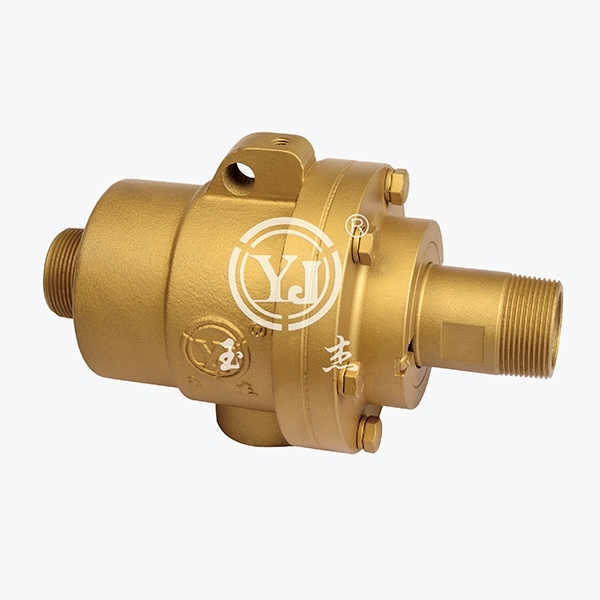

                                                                      MXQ3 Rotary Joint (Fixed)

                                                                      Model：MXQ3
                                                                      Outer pipe： Thread connection or flange connection
                                                                      Feature：Convex or concave spherical seal; Standard antimony impregnated graphite or carbon graphite sealing technology; Double widely spaced graphite bearing support; Precision cast iron shell; Dual-flow design; Preventive maintenance design wiht sealing abrasion scale line; Surface treatment of the rotating shaft for abrasion resistance and corrosion resistance; Automatic centering.

                                                                      Technical Parameter：
                                                                      Media Steam、Hot oil
                                                                      Max.Temperature ≤350℃ (Hot oil)；≤220℃ (Steam)
                                                                      Max.Pressure ≤1.8MPa
                                                                      Max.Speed ≤ 200rpm

                                                                      Product consultation Back to list

                                                                      Sales Service Hotline：

                                                                      0595-8686 1188


                                                                      Model K I O S d L1 L2 L5 L6 L7 L8 L9 M N H SW Flange outer tube size control table
                                                                      A B C D
                                                                      32A R1-1/4" Rc1" Rc1/2" Rp1/2" 30 51 122 222 238 108 124 23 M10 14 60 41 40 13 38 20
                                                                      40A R1-1/2" Rc1-1/4" Rc3/4" Rp3/4" 36 62 143 254 278 133 149 22 M10 16 71 46 47.8 13 45 20

                                                                      We offer customized products if special sizes.
                                                                      Specifications are subject to change without notice.
